Temperature and Humidity Data Logger

                                     MU-01 Temperature & Humidity Data Logger

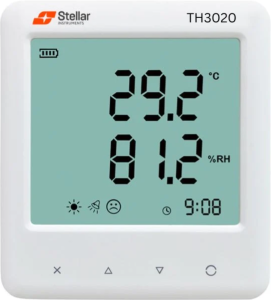

Temperature and humidity data logger supplied in UAE

                                     Features

  • From -30˚C~70˚C and 0~100 %RH readings.
  • Memory capacity up to 32,000 records
  • Programmable logging interval (10 seconds to 24 hours)
  • Configurable high and low alarm limits
  • Automatic encrypted PDF report generation with password protection.
  • Compliance with CE(EN12830), RoHS, BQB, and FDA (21CFR).
                             Overview

    The MU-01 Temperature & Humidity Data Logger is a compact, reusable environmental monitoring device designed for accurate recording of temperature and humidity conditions for food, pharmaceuticals and other products in storage and transportation environments. Supports multiple start and stop modes, multiple threshold settings, two storage modes and automatically generates PDF reports.

    SpecificationMU-01
    Measurement Range-30°C ~ +70°C (-22°F ~ 158°F)
    0% RH ~ 100% RH
    Sensor TypeInternal
    Temperature Accuracy±0.5°C (-20°C to 40°C), ±1.0°C (others)
    Humidity Accuracy±3% RH (25°C: 20% RH ~80% RH), ±5% RH (others)
    Display ResolutionTemperature:0.1°C; Humidity :0.1% RH
    MemoryMemory
    Logging Interval10 second ~24 hours (programmable)
    Start ModePress Button or Scheduled date & time
    Stop ModePress Button, use software, or auto stop
    Alarm ThresholdConfigurable
    Temperatureup to 3 high limits and 2 low limits
    Humidity1 high limit and 1 low limit
    Alarm Delay10 second ~ 24 hours
    Report TypePDF
    Data InterfaceUSB port
    Battery3.0V disposable Lithium battery CR2450
    Battery LifeTypically, 1 Year
    Protection LevelIP65
    Dimensions97 mm x 45 mm x 12.5 mm(LxWxH)
